| Seat Cushion Type | : | Compact Type | |
| Suspension | : | Narrow AIR Suspension With 12V/24V Built-In Compressor | |
| Sliding Base | : | Fore and Aft. Adjustment 150mm (Incremente of 15mm) | |
| Suspension Stroke | : | 80mm (Air Suspension & Hydraulic Shock Absorber) | |
| Height Adjustment | : | 60mm (Manuel) | |
| Weight Adjustment | : | 50-130kg. | |
| Backrest Adjustment | : | W/O | |
| Lumbar Adjustment | : | W/O | |
| Certificates | : | EU 1322/2014 – ECE R16.06 | |
New
STplus V42AIR
” Compact Design Driver’s Seat For Tractor Forklifts, Construction Machinery and Special Vehicles “
Narrow AIR Suspension With 12V/24V Built-In Compressor
Description

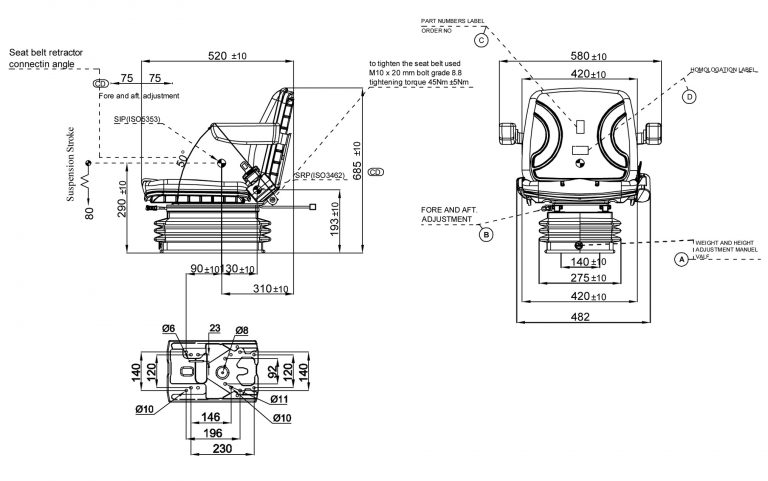

TECHNICAL DRAWING
TECHNICAL DRAWING
UPHOLSTERY COLOR
UPHOLSTERY COLOR
ACCESSORIES
ACCESSORIES
SPARE PARTS
